Integrated Camera
✓
NFC Card & Keyfob Access
✓
PIN Access
✓
Apple/Google Wallet
✓
Mobile Unlock
✓
Two-Way Intercom & Doorbell Access
✓
NDAA Compliant
✓
UL 294 Level
Destructive attack: Level I
Line security: Level I
Endurance: Level I
Standby power: Level I
Weatherproofing
IP55
Enclosure Material
Polycarbonate, glass
Mount Material
Aluminum alloy
Mounting
Wall, gang-box mount (Included)
Angle mount, junction box (Optional)
Indoor and Outdoor Use
Yes
Ambient Operating Temperature
Device: -30 to 45° C (-22 to 113° F)
Display: -10 to 45° C (14 to 113° F)
Ambient Operating Humidity
5 to 90% noncondensing
Networking Interface

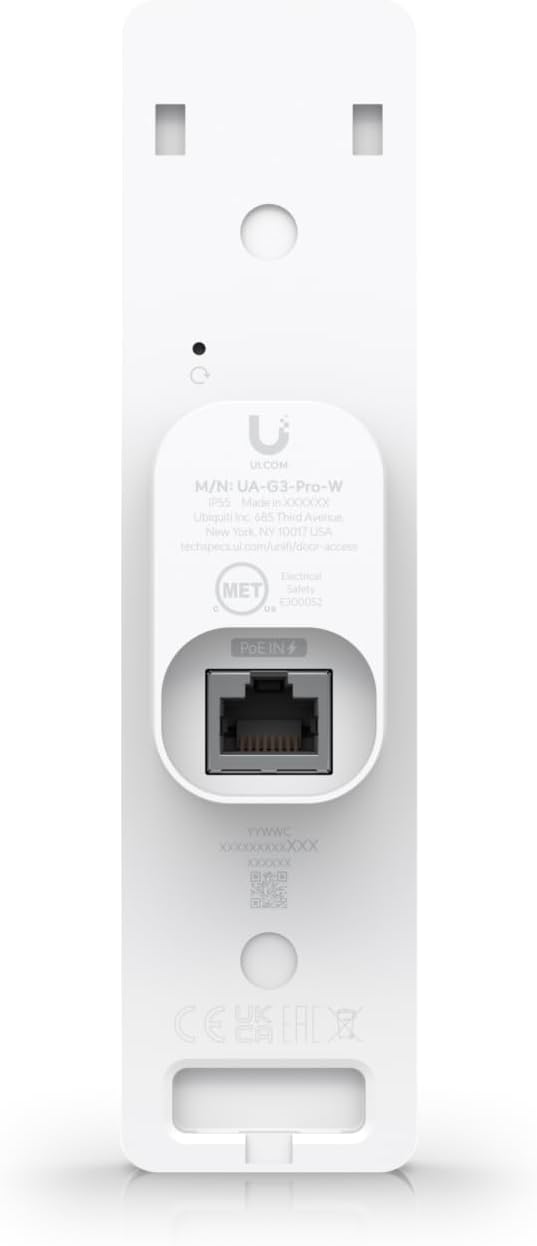

(1) GbE RJ45 port
Connectivity
BLE 4.2
NFC
Power Method
PoE
UL 294 Power-limited Class 2 PSU
UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption
6W
Supported Voltage Range
48V DC
ESD/EMP Protection
Air: ±15kV, contact: ±8kV
Sensors
Proximity sensor
Display
120 mm (4.7") diagonal
Touch Screen Technology
Capacitive touch
Display Luminance
480 nits (Typical)
Screen Orientation
Portrait
Resolution
1280 x 286 px
Microphone
✓
Speaker
✓
⚠️ This is a special order item. sales on special order items are final. No returns, cancellations, or refunds will be accepted.
