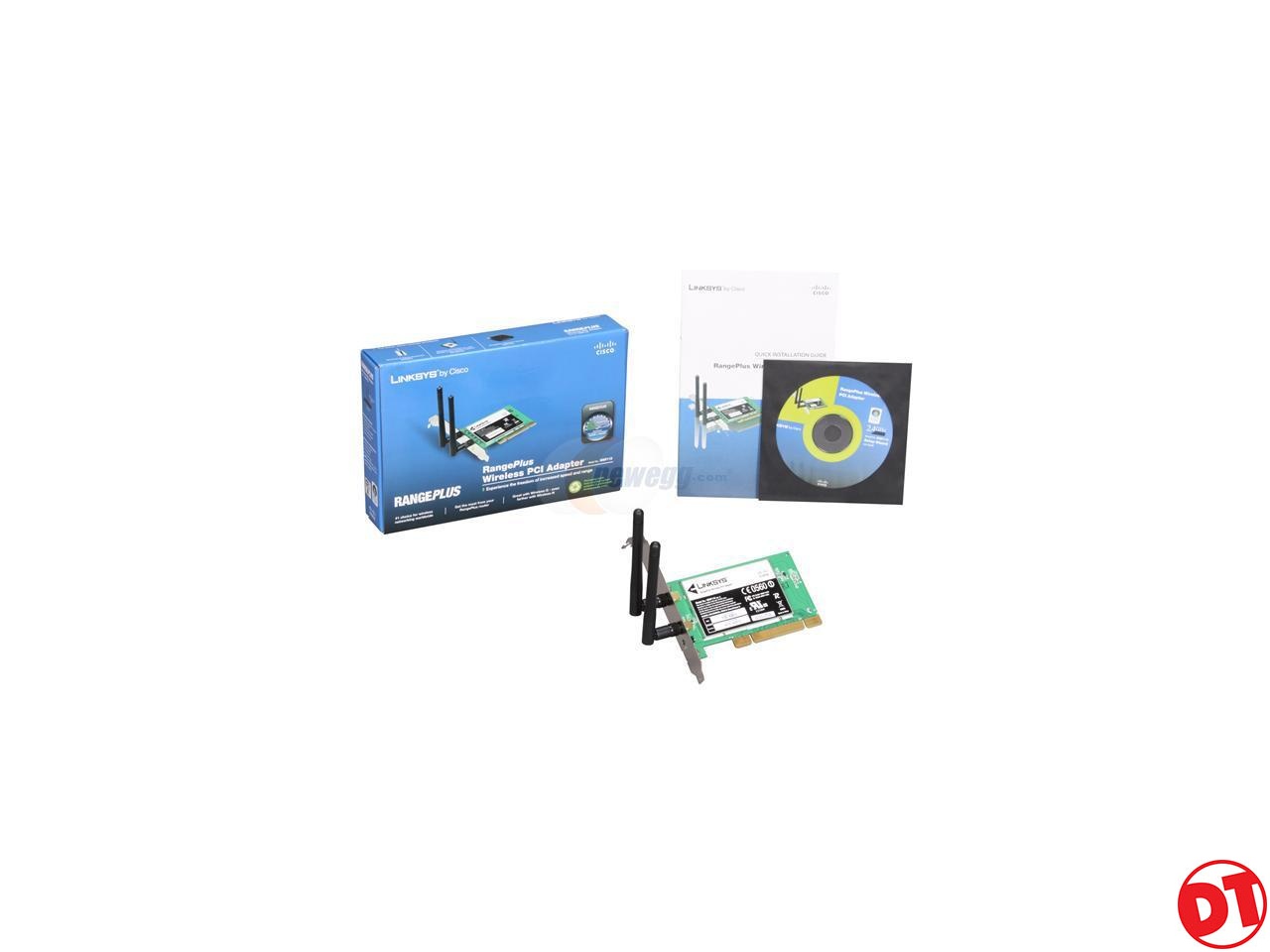

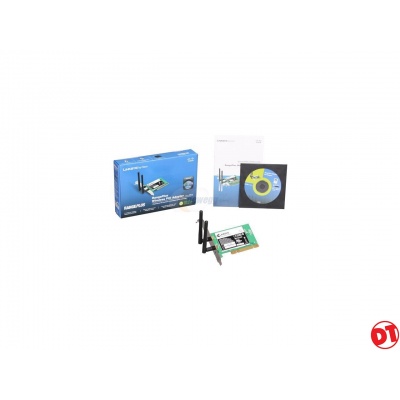

Linksys WMP110 RangePlus Wireless PCI Adapter

Model WMP110
Standards IEEE 802.11b, IEEE 802.11g
LEDs Link/Act
Number of Antennas 2 External Dipole Antennas
Connector Type PCI
Detachable Antennas Yes
Modulations 802.11b: CCK, QPSK, BPSK
802.11g: BPSK, QPSK, 16-QAM, 64-QAM
802.11n: BPSK, QPSK, 16-QAM, 64-QAM
RF Power (EIRP) in dBm 802.11b: 17dBm
802.11g: 16dBm
802.11n: 20MHz: 16dBm
 40MHz: 15dBm
Receive Sensitivity in dBm 802.11b: -84dBm
802.11g: -66dBm
802.11n: 20MHz: MCS=15: -64dBm
 40MHz MCS=15, -60dBm
Power Consumption 802.11b: TX: 400mA, at 3.3V
 RX: 340mA, at 3.3V
802.11g: TX: 360mA at 3.3V
 RX: 340mA at 3.3V
802.11n: TX: 360mA at 3.3V
20MHz RX: 340mA at 3.3V
802.11n: TX: 380mA at 3.3V
40MHz RX: 340mA at 3.3V
Antenna Gain in dBi 1.8 dBi
Security Features WEP, Wi-Fi Protected Access™ 2 (WPA2)
Security Key Bits Up to 256-Bit Encryption
